Explore EX60 specifications

Powertrain options. Key dimensions. Standard features and upgrades. All you need to find the right Volvo car for you.

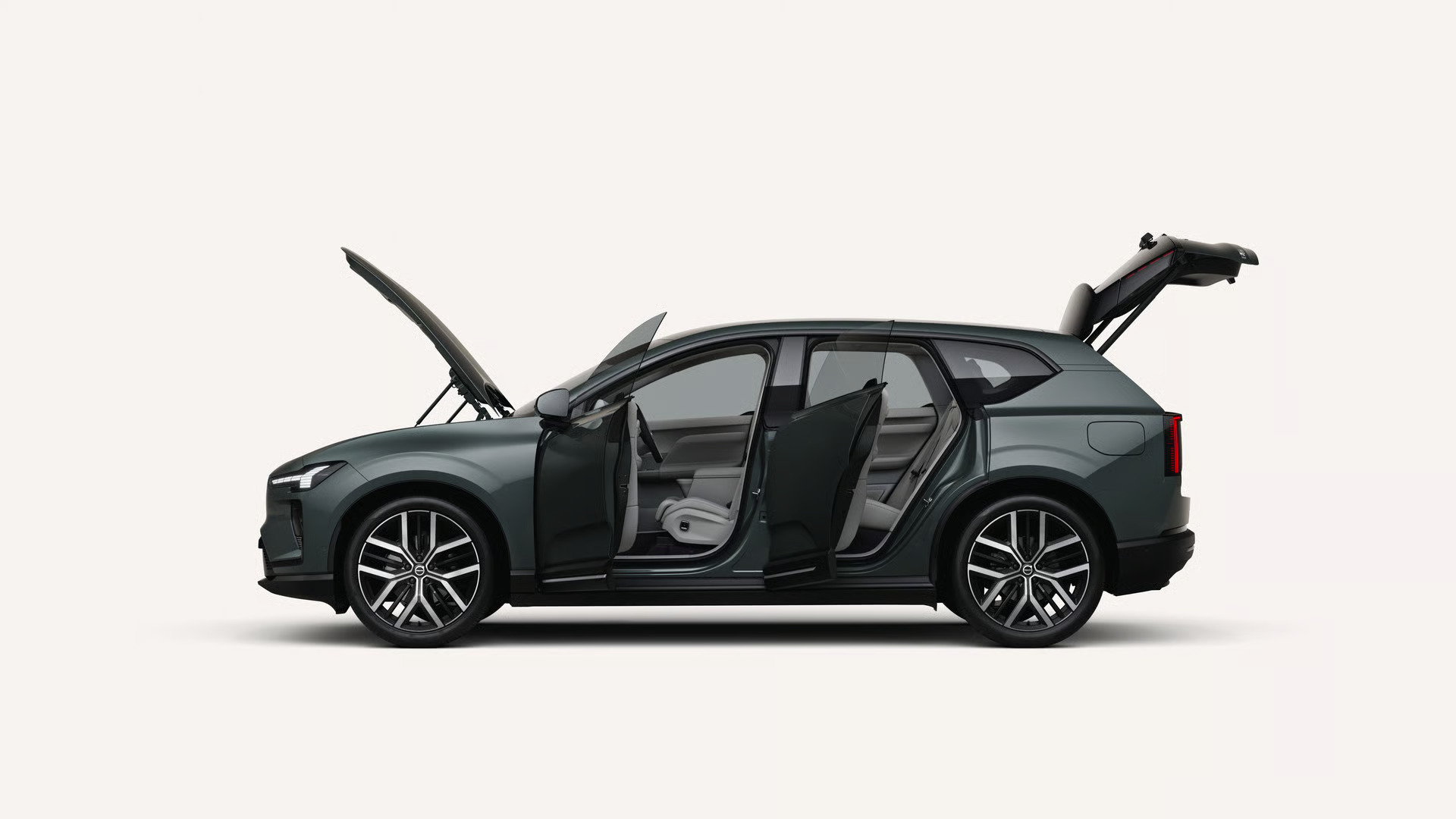

Explore EX60 specifications Image

Platform

P6 Electric

  • Fuel type Electric
  • Driveline RWD
  • Transmission Automatic
  • Electrical system 800 V
  • Number of seats 5
  • Weight (running order mass) 2189 kg
  • Gross vehicle weight2650 kg
  • Trailer max weight 2000 kg
  • Roof load max weight 100 kg

Performance

  • Electric range (up to) Up to 611 km
  • Electric energy consumption 14.9 kWh/100km
  • Power 275 kW / 374 hp
  • Max torque 480 Nm
  • 0-100 km/h 5.9 s
  • Top speed 180 km/h
  • Environmental classification Euro6e

Charging

  • Battery energy (nominal) 83 kWh
  • Battery charging duration 0-100% (3-phase 16A) 8 h
  • Battery charging duration 10-80% (DC 350kW) 16 m

P10 AWD Electric

  • Fuel type Electric
  • Driveline AWD
  • Transmission Automatic
  • Electrical system 800 V
  • Number of seats 5
  • Weight (running order mass) 2350 kg
  • Gross vehicle weight2810kg
  • Trailer max weight 2400kg
  • Roof load max weight 100 kg

Performance

  • Electric range (up to) Up to 660 km
  • Electric energy consumption combined (NEDC) 16.2 kWh/100km
  • Power 375 kW / 510 hp
  • Max torque 710 Nm
  • 0-100 km/h 4.6 s
  • Top speed 180 km/h
  • Environmental classification Euro6e

Charging

  • Battery energy (nominal) 95 kWh
  • Battery charging duration 0-100% (3-phase 16A) 9 h
  • Battery charging duration 10-80% (DC 400kW) 16 m

Car dimensions

Exterior

  • Vehicle height at kerb weight with one person 1635 mm
  • Width (mirrors incl) 2067 mm
  • Front track width 1655 mm
  • Width 1908 mm
  • Width (mirrors folded) 1993 mm
  • Rear track width 1640 mm
  • Vehicle length 4803 mm
  • Wheelbase 2970 mm
  • Turning circle 11 m

Interior

  • Head room front with panoramic roof 1041 mm
  • Shoulder room rear 1374 mm
  • Hip room front 1413 mm
  • Head room rear with panoramic roof1030 mm
  • Leg room front 1058 mm
  • Hip room rear 1349 mm
  • Shoulder room front 1437 mm
  • Leg room rear 951 mm

Storage

  • Cargo floor width between wheel housing 1052 mm
  • Second seatback to tailgate - top of second seatback 751 mm
  • First seatback to tailgate - top of first seatback 1693 mm
  • Luggage capacity (open) - second row up 523 l
  • Luggage capacity (open) - seats folded 998 l
  • Luggage capacity (max) - second row up 634 l
  • Luggage capacity (max) - seats folded 1647 l
  • Cargo capacity (front) 58 l
  • Closed storage compartments 63 l

Features

  • 22kw On-Board Charger (OBC)
    Ultra
  • 400V DC/DC booster
    Ultra
  • 800V technology
    Ultra
  • Bi-directional charging
    Ultra
  • Breathe Charge software
    Ultra
  • Home charging cable, mobile 7m (10A)
    Ultra
  • Plug & Charge
    Ultra

  • Air purifier and remote cabin pre-cleaning
    Ultra
  • Frameless heated door mirrors
    Ultra
  • Heat pump
    Ultra
  • Heated steering wheel
    Ultra
  • High voltage air heater
    Ultra
  • Humidity sensor
    Ultra
  • Parking comfort mode
    Ultra
  • Remote interior pre-conditioning
    Ultra
  • Three-zone climate system
    Ultra
  • Wiper blades with integrated heating
    Ultra

  • 11.4-inch dual-cell LCD driver display
    Ultra
  • 15.04-inch curved OLED centre display
    Ultra
  • 360° camera with 3D view
    Ultra
  • Active chassis
    Ultra
  • Advanced sensing technology
    Ultra
  • Auto-dimmed rear view mirrors
    Ultra
  • BLIS™ (Blind Spot Information System)
    Ultra
  • Chassis with FSD dampers
    Ultra
  • Collision avoidance and mitigation
    Ultra
  • Connected Safety
    Ultra
  • Core computing
    Ultra
  • Cross traffic alert with low speed auto brake
    Ultra
  • Door opening alert
    Ultra
  • Drive modes
    Ultra
  • Drive modes Performance
    Ultra
  • Driver Understanding
    Ultra
  • Emergency stop assist and safety call
    Ultra
  • Headlight cleaning
    Ultra
  • High-definition pixel headlights
    Ultra
  • Intersection autobrake
    Ultra
  • Lane keeping aid
    Ultra
  • Occupant sensing
    Ultra
  • Oncoming Lane Mitigation
    Ultra
  • One pedal drive
    Ultra
  • Park Pilot Assist
    Ultra
  • Pedestrian, cyclist and scooter steering avoidance
    Ultra
  • Pilot Assist
    Ultra
  • Power adjustable steering column
    Ultra
  • Rain sensor
    Ultra
  • Range assistant
    Ultra
  • Rear collision warning
    Ultra
  • Road sign Information
    Ultra
  • Run-off road Mitigation
    Ultra
  • Tyre pressure monitoring
    Ultra
  • Volvo Assistance services
    Ultra

  • 21″ 5-spoke glossy black/matt graphite diamond cut
    Ultra
  • 21″ 5-spoke glossy black/matt graphite diamond cut, rear
    Ultra
  • 21″ 6-spoke matt/glossy black diamond cut
    Ultra
  • 21″ 6-spoke matt/glossy black diamond cut, rear
    Ultra
  • 22″ 5-Y spoke matt black
    Ultra
  • 22″ 5-Y spoke matt black diamond cut
    Ultra
  • 22″ 5-Y spoke matt black diamond cut, rear
    Ultra
  • 22″ 5-Y spoke matt black, rear
    Ultra
  • Active front shutter
    Ultra
  • Bright exterior design theme
    Ultra
  • Dark exterior design theme
    Ultra
  • Electrochromic roof
    Ultra
  • Frameless doors and flush glazing
    Ultra
  • Ground lighting
    Ultra
  • Tinted rear windows
    Ultra
  • Wing grip door handles
    Ultra

  • Central floor console storage
    Ultra
  • Charcoal headlining
    Ultra
  • Crystal media control
    Ultra
  • Dawn headlining
    Ultra
  • Door panel storage
    Ultra
  • Front and rear phone storage
    Ultra
  • Interior illumination, high level
    Ultra
  • Nordico upholstery with ventilation
    Ultra
  • Premium textile interior cabin floor mats
    Ultra
  • Rear centre armrest with cupholders/storage
    Ultra
  • Sliding front 2+1 cupholders and storage
    Ultra
  • Tailored steering wheel
    Ultra
  • Tailored textile dashboard and soundbar
    Ultra
  • Ventilated nappa leather upholstery
    Ultra
  • Weathered grey ash wood
    Ultra

  • 60/40 split load floor
    Ultra
  • Front load compartment, frunk
    Ultra
  • Hands-free power tailgate
    Ultra
  • Power tailgate
    Ultra
  • Retractable load cover
    Ultra
  • Roof rack fixing points
    Ultra

  • Shift-by-wire single speed transmission
    Ultra

  • Airbags
    Ultra
  • Alarm
    Ultra
  • Digital key plus
    Ultra
  • Inflatable Curtain
    Ultra
  • Integrated booster cushions
    Ultra
  • ISOFIX mounting points, rear seat
    Ultra
  • Key card
    Ultra
  • Laminated side windows
    Ultra
  • Multi-adaptive front safety belts
    Ultra
  • Power child safety lock
    Ultra
  • Side impact protection
    Ultra
  • Temporary mobility kit
    Ultra
  • Warning triangle
    Ultra
  • Whiplash injury protection
    Ultra

  • 5 seats
    Ultra
  • Ergonomically designed front seats
    Ultra
  • Folding three-split rear seat with one touch fold
    Ultra
  • Heated front seats
    Ultra
  • Heated rear seats
    Ultra
  • Manual cushion extensions, driver and passenger
    Ultra
  • Power 4-way lumbar support
    Ultra
  • Power adjustable front seats
    Ultra
  • Power folding rear head restraints
    Ultra
  • Power passenger seat
    Ultra
  • Power reclinable rear seat backrests
    Ultra
  • Ventilated front seats
    Ultra

  • Bluetooth® connection
    Ultra
  • Bowers & Wilkins High Fidelity audio system
    Ultra
  • Google Gemini, Google Maps and Google Play Store
    Ultra
  • Over-the-air updates (OTA)
    Ultra
  • Steering wheel controls
    Ultra
  • USB-C ports
    Ultra
  • Volvo Cars App
    Ultra
  • Wireless Apple CarPlay and Android Auto
    Ultra
  • Wireless phone charging
    Ultra
